2. Heat Exchanger
V-shaped microchannel heat exchangers for chillers and Cu/Al heat exchangers for heat pumps.
Heating
Cooling
Hot domestic water
High performance under partial load
Low noise levels
Compact dimensions
What are the MECH-iS-G07 and MEHP-iS-G07 modular chillers?
The MECH-iS-G07 and MEHP-iS-G07 are new series of chillers and reversible heat pumps, engineered with meticulous attention to quality and every detail.
Designed for a wide range of applications—from comfort air conditioning to industrial and IT cooling—these systems deliver leading energy efficiency in an exceptionally compact footprint, making them the smallest in their class. Equipped with variable-speed scroll compressors and using R32 refrigerant with a low global warming potential (GWP), and offering capacities from 50 to 220 kW, they are ideal for sustainable and efficient cooling and heating across diverse applications.
Училищата и университетите се нуждаят от енергийно ефективна и лесно управляема климатична система, за да се справят с прегряване от слънчево греене и да осигурят комфортна учебна среда.
Системата Hybrid VRF осигурява стабилен контрол на температурата в помещенията, без наличие на хладилен агент в обитаваните зони. Това значително улеснява съответствието със стандарта BS EN 378 и елиминира нуждата от скъпи системи за откриване на течове.
Премахването на хладилния агент от обитаваните пространства прави Hybrid VRF идеално решение за медицински обекти, като осигурява надежден температурен контрол и оптимален комфорт за пациенти и медицински екипи.
Благодарение на гъвкавия си дизайн, Hybrid VRF е идеална система за офис пространства. Децентрализираната архитектура позволява поетапен монтаж и лесна пренастройка при промени във вътрешното разпределение.
В сърцето на системата Hybrid VRF стои Hybrid Branch Controller (HBC). Всеки HBC може да бъде разширен с помощта на подчинени модули (Sub HBC), като поддържа до 50 вътрешни тела. Mitsubishi Electric предлага широка гама от вътрешни тела, в зависимост от изискванията в интериора на конкретния търговец.
Hybrid VRF е идеално решение за съвременни, плътно изолирани високи сгради, като съчетава комфорта на чилър с гъвкавостта и ефективността на VRF системи. Чрез използването на хладилен агент R32 с нисък GWP, собствениците и инвеститорите покриват своите ESG/CSR цели и гарантират устойчивостта на сградите си в дългосрочен план.
Engineered with precision to perfection

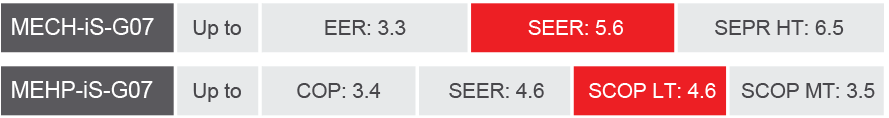

The MECH-iS-G07 and MEHP-iS-G07 series deliver exceptional performance, particularly under partial load conditions, thereby helping households and businesses reduce the energy costs of their HVAC systems.

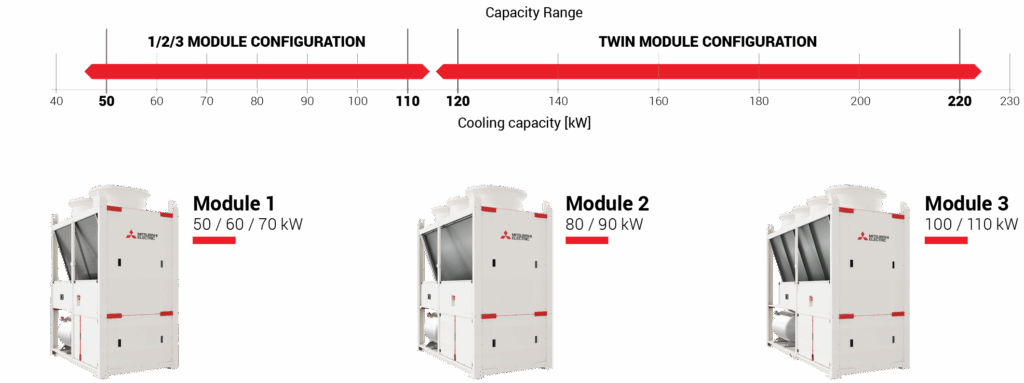

Wide operating range – 7 new sizes, developed in 3 compact modules, covering any thermal load up to 110 kW.
Expandable up to 220 kW with an optional dual-module configuration – connecting two units of equal capacity.
1
Low noise levels
The MECH-iS-G07 and MEHP-iS-G07 chillers are standardly equipped with sound-insulating casings for the compressors and hydraulic modules, ensuring quiet and comfortable operation in any environment.
2
Compact dimensions
Exceptionally compact dimensions. The reduced width of the units makes them ideal for transporting multiple modules simultaneously.
3
High performance
A unique solution for heating, cooling, and domestic hot water production.
Advantages of the MECH-iS-G07 and
MEHP-iS-G07 modular chillers
- Wide operating range down to –12°C leaving water temperature from the evaporator and down to –20°C outdoor air temperature.
- Components with exceptionally high reliability.
A wide range of heat exchanger solutions, including:
Microchannel with e-coating (epoxy coating);
Copper/aluminum (Cu/Al);
Pre-painted fins;
Anti-corrosion protection with ‘Silver’ coating;
Hydrophilic coating (for the MEHP-iS-G07 model).
High-efficiency operation under partial load conditions
Exceptionally quiet and compact unit
Wide operating range: down to –20°C outdoor temperature; up to 65°C for domestic hot water production in heat pump mode
“Plug & Play” solution thanks to the integrated pump kit and buffer tank
Domestic hot water production (MEHP-iS-G07 only)
Heating-optimized design (MEHP-iS-G07)
R32 refrigerant
Refrigerant leak detection options

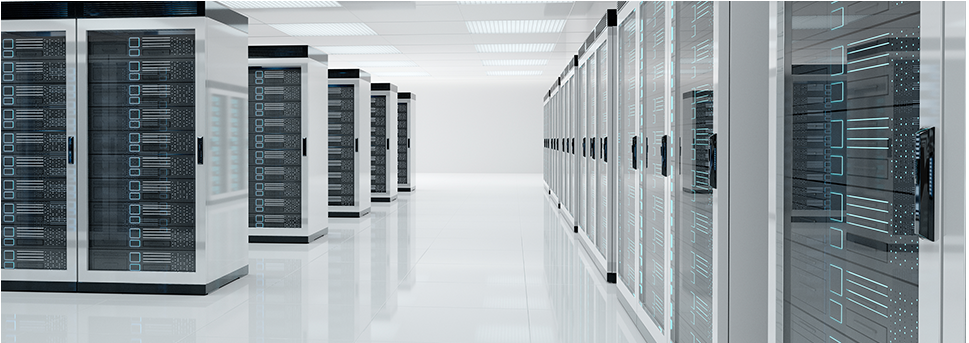

Server room cooling
MECH-iS-G07, in combination with w-MEXT, creates a complete Mitsubishi Electric system, ideal for small and medium-sized data centers.”
High leaving water temperature – up to 24°C
LAN functionality with management capability for up to 8 units
HPC software for optimization of the entire system of chillers and CRAH units
MECH-is-g07

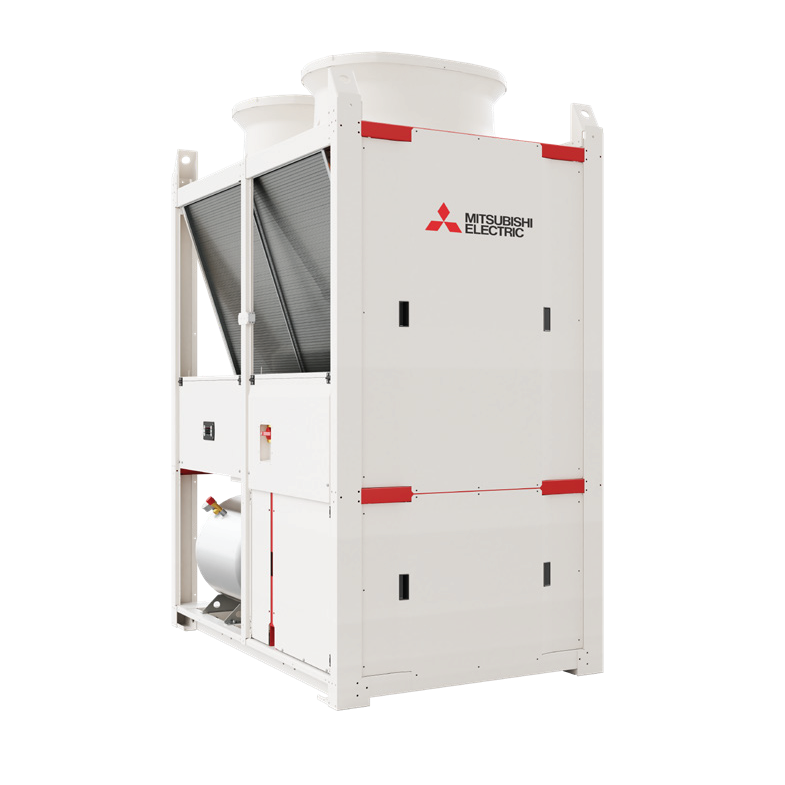

The MECH-iS-G07 modular chiller can operate at outdoor temperatures of up to +50°C and chilled water temperatures from –12°C to +24°C – values that make the system ideal for industrial cooling and IT infrastructure applications.
MECH-is-g07
The MEHP-iS-G07 modular chiller can independently, without additional accessories, produce both medium-temperature water for space heating and cooling, as well as domestic hot water up to 65°C. These key features make the model an attractive alternative to traditional gas or oil heating systems.
Utilization of renewable energy sources
Energy efficiency
Environmentally friendly
Specifically designed and optimized for heating mode (MEHP-iS-G07)

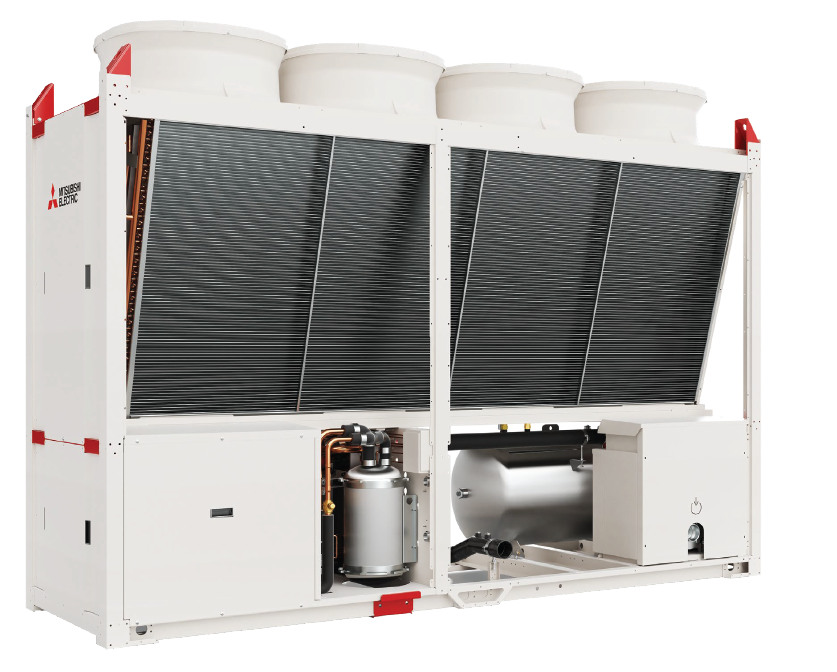

1. Complete fan module
Standardly equipped with energy-efficient EC fans for maximum performance.
3. Hydrophilic Coating
For heat pump version only.
Treatment of the heat exchanger on the source side, allowing water droplets to drain easily from the surface.
4. Inverter Scroll Compressors
Standardly equipped with a sound-insulating casing.
Control
W3000+ management software – available with standard keypad or touchscreen, offering specialized settings for precise control of your equipment.
Compact keypad (standard equipment)
Compact keypad (standard equipment)
KIPLink (optional) – Full access only via QR code scanning.
