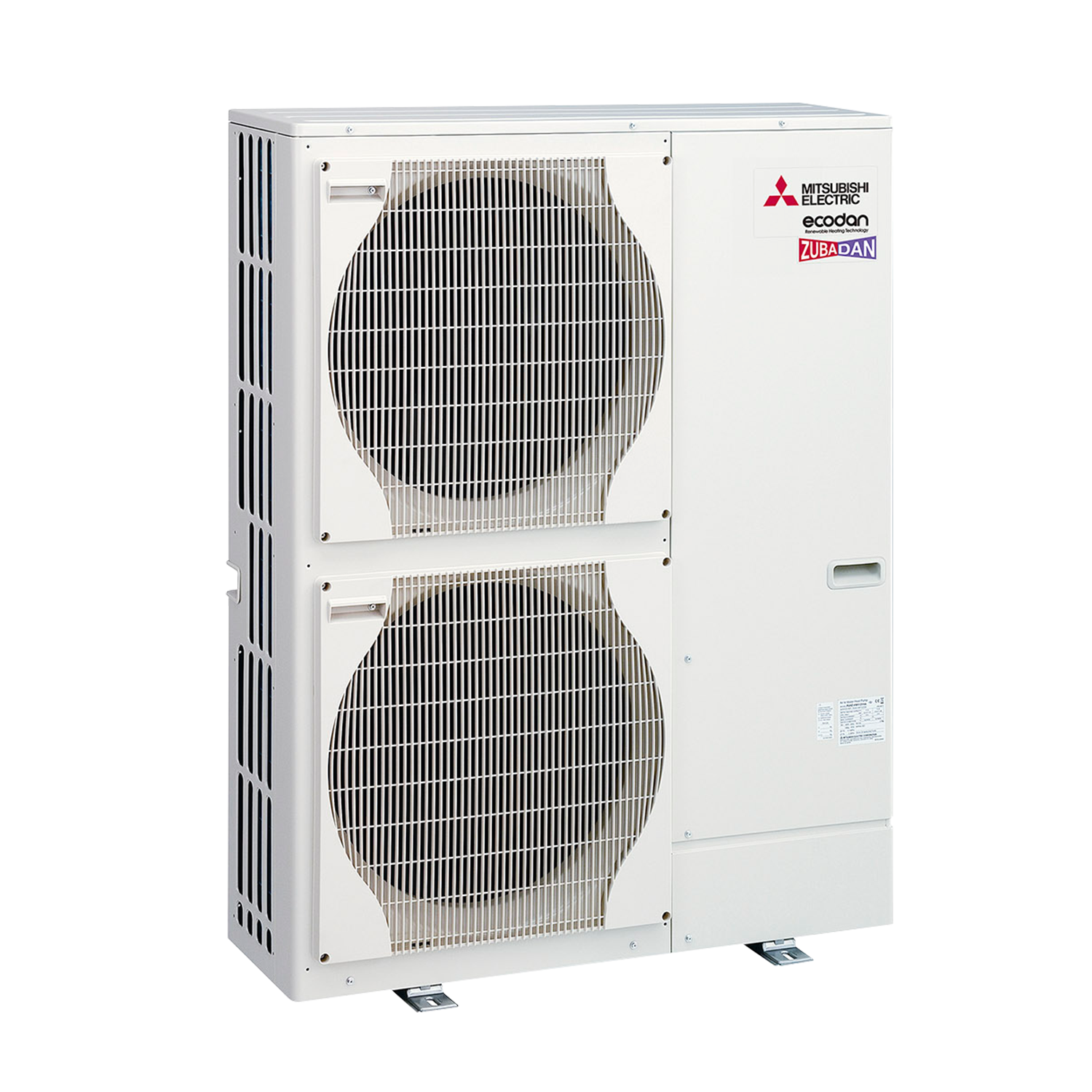

Outdoor Unit Ecodan R410 Mitsubishi Electric PUHZ-SHW112YAA, Zubadan / 11.2 kW / 38 000 BTU
Outdoor Unit Ecodan R410 Mitsubishi Electric PUHZ-SHW112YAA, Zubadan / 11.2 kW / 38 000 BTU - Image 2
5 828.73 € / 11 400.00 BGN
Recommended price with VAT without eco tax and installation  78.74 € / 154.00 BGN eco tax
Where to buy

Outdoor Unit Ecodan R410 Mitsubishi Electric PUHZ-SHW112YAA, Zubadan / 11.2 kW / 38 000 BTU

5,828.73 €

Outdoor unit from the Ecodan series PUHZ-SHW112YAA with 38 000 BTU nominal capacity.

The Zubadan technology offers you shorter time for heating the room and also reaches full heating capacity with outdoor temperature -15°С, while the operation range is -28°C. Compared to the conventional models, the heating capacity is 40% bigger. In cooling mode Zubadan keeps the programed temperature in the room – you save and also are considerate to the environment. The Zubadan Inverter indoor units have shorter defrost time.



More information about Ecodan Air-to-Water heat pumps — https://climacom.com/en/heat-pumps-ecodan/

PUHZ-SHW112YAA

  • *

    Heating power A7-W35 / A-15/W35 [kW] 11.20 / 11.20
    Heat energy consumption A7-W35 / A-15/W35 [kW] 2.54 / 4.79
    COP A7-W35 / A-15/W35 4.40 / 2.34
    Average climate water outlet 35°C Average climate water outlet 35°C
    Average climate water outlet 55°C Average climate water outlet 55°C
    DHW 200/300(L) Load Profile (Average climate) DHW 200/300(L) Load Profile (Average climate)DHW 200/300(L) Load Profile (Average climate)
    Cooling capacity A35-W7 / A35-W18 [kW] 10.00 / 10.00
    Energy consumption during cooling A35-W7 / A35-W18 [kW] 3.53 / 2.11
    EER A35-W7 / A35-W18 2.83 / 4.74
    Noise level during heating[dB(A)] 60
    Operating range -28 ~ +46
    Dimensions [mm] 1020-1050-480
    Weight [kg] 128
    Power supply 400 V / 3 N / 50 Hz
    Regular Price (incl. VAT without installation)5 828.73 € / 11 400.00 BGN
    Eco tax78.74 € /  154.00 BGN

Product total

Options total

Grand total

Price list Ecodan 2025
See document
Catalogue Ecodan 2025
See document
Brochure Ecodan 2024
See document
Catalogue Zubadan 2023
See document

Frequently Asked Questions

Can Outdoor Unit Ecodan R410 Mitsubishi Electric PUHZ-SHW112YAA, Zubadan / 11.2 kW / 38 000 BTU both cool and heat?

Outdoor Unit Ecodan R410 Mitsubishi Electric PUHZ-SHW112YAA, Zubadan / 11.2 kW / 38 000 BTU can be used for both cooling and heating. Cooling capacity: 10.00 / 10.00. Heating capacity: 11.20 / 11.20.

How quiet is Outdoor Unit Ecodan R410 Mitsubishi Electric PUHZ-SHW112YAA, Zubadan / 11.2 kW / 38 000 BTU?

Outdoor Unit Ecodan R410 Mitsubishi Electric PUHZ-SHW112YAA, Zubadan / 11.2 kW / 38 000 BTU operates with a noise level of 60, which makes it suitable for bedrooms, living rooms, and offices.
