Indoor unit for multisplit system Mitsubishi Electric-MSZ-AP60VGK /MXZ Series/ 6,1kW / 21 000 BTU
Indoor unit for multisplit system Mitsubishi Electric-MSZ-AP60VGK /MXZ Series/ 6,1kW / 21 000 BTU - Image 2
Indoor unit for multisplit system Mitsubishi Electric-MSZ-AP60VGK /MXZ Series/ 6,1kW / 21 000 BTU - Image 3
1 399.00 BGN / € 715.30
(with VAT without installation)
Where to buy

Indoor unit for multisplit system Mitsubishi Electric-MSZ-AP60VGK /MXZ Series/ 6,1kW / 21 000 BTU

1,399.00 лв.

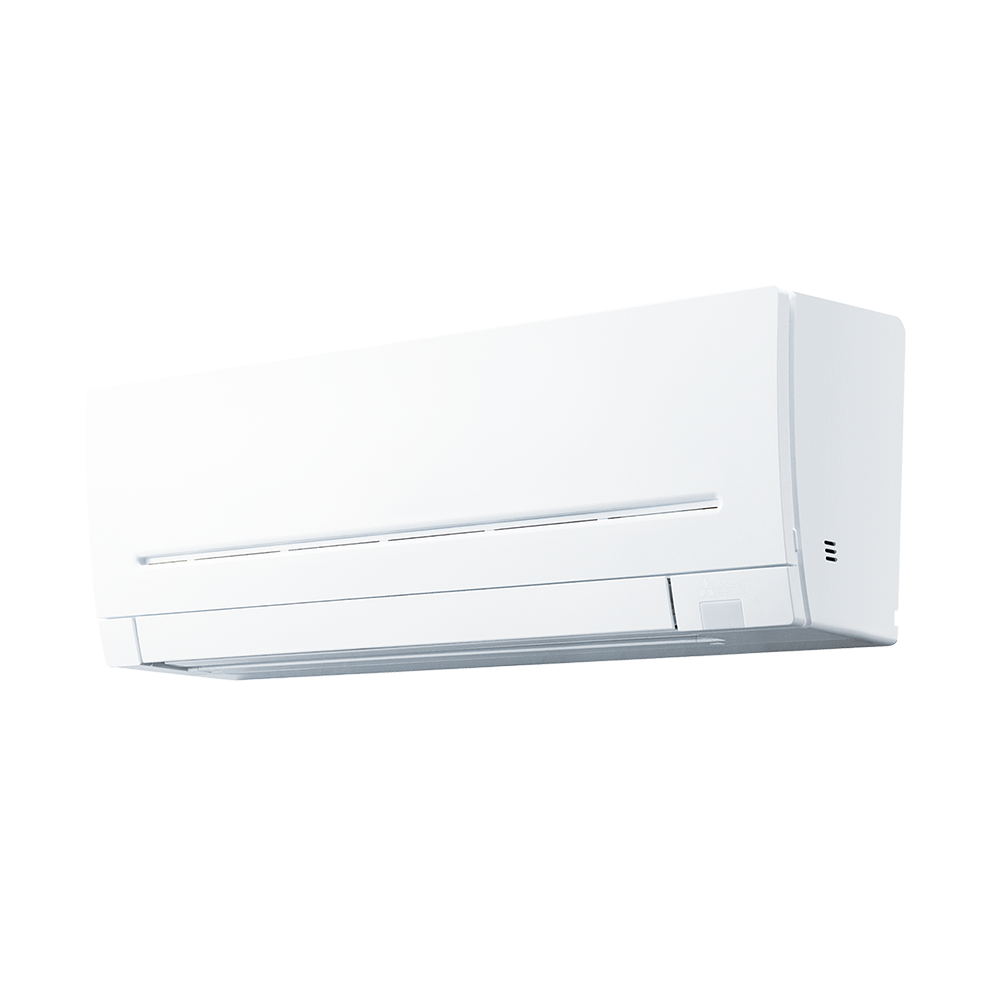

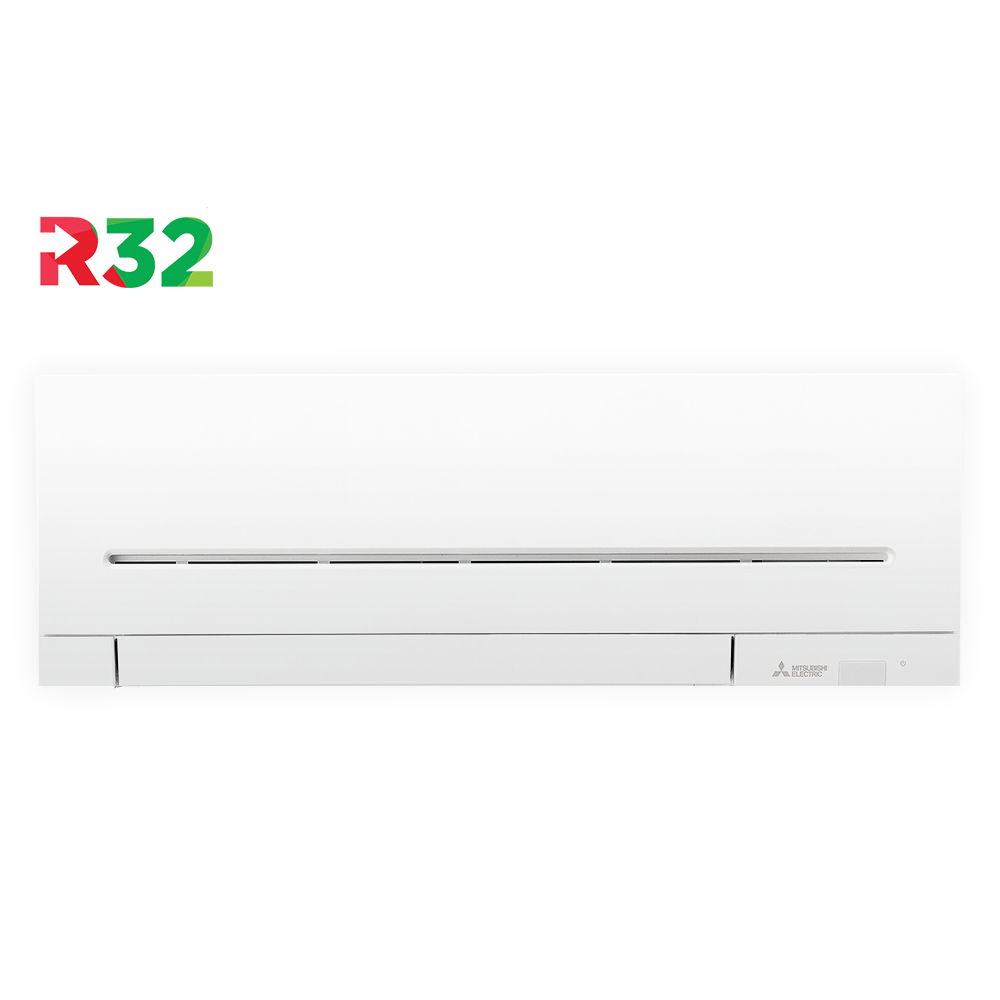

MSZ–AP range is a wall mounted system that blends energy efficiency with a modern white design. Boasting outstanding benefits, includes optional Wi-Fi control and utilises low GWP R32 refrigerant.

Тhe indoor unit has an extremely low noise operation levels of 19dBA.

The units include double vanes to distribute airflow evenly throughout the room and offer weekly timers as standard to provide greater control of scheduling.

https://www.youtube.com/watch?v=0HOcXDZ5KF8

Функции
Mode of vertical swing of the slat 60/71
Mode of vertical swing of the slat 60/71
The exhaust fan "swings" from end to end so that the air flow reaches every part of the room.
MXZ connection (multisplit)
MXZ connection (multisplit)
It is possible to connect to an outdoor unit from the MXZ series (multi-split system).
Night mode
Night mode
The temperature self-regulates according to sleeping habits.
10°C Heating
10°C Heating
In the heating process, the temperature can be set to increase gradually from 1°C to 10°C.
ACO
ACO
The air conditioner automatically switches from heating mode to cooling mode and vice versa to maintain the desired temperature.
Cleaning-free Pipe Reuse
Cleaning-free Pipe Reuse
Allows the use of the same pipes, as well as easy replacement of air conditioning systems using R22 or R410 refrigerant.
DC Fan Motor
DC Fan Motor
A high efficiency DC motor drives the outdoor unit fan. The efficiency is much higher than the equivalent AC motor.
Econo cool
Econo cool
Econo Cool is an intelligent temperature control feature that adjusts the amount of airflow to the body based on the temperature of the outlet air. The temperature setting can be increased by 2°C without any loss of comfort, therefore achieving a 20% increase in energy efficiency.
Joint Lap DC Мотор
Joint Lap DC Мотор
Joint Lap DC Мотор Mitsubishi Electric's unique motor, which in Japan is called the Poki Poki Motor. With its high density, it contributes to significantly high efficiency.
M-NET Connection
M-NET Connection
M-NET Connection The air conditioners can be connected to a MELANS system controller (M-NET controller).
Natural White
Natural White
Natural white indicates the color of the device. White gives a feeling of cleanliness and is easily combined with any type of interior.
On/Off Timer
On/Off Timer
Use the remote control to set the on and off times of the air conditioner.
V Blocking Filter
V Blocking Filter
With an antiviral effect, it retains 99% of the adhering virus and other harmful substances, such as bacteria, mold and allergens. The double-layer non-woven fabric filter and electrostatic filter can effectively capture and remove small particles from the air in your room.
WiFi interface
WiFi interface
The WiFi interface provides remote control of the air conditioning system using smartphones, tablets or laptops.
Automatic ventilation mode
Automatic ventilation mode
The airflow strength setting automatically adjusts the ventilation speed of the indoor unit according to the temperature conditions in the room.
Automatic closing of the slat
Automatic closing of the slat
The louver of the air conditioner closes automatically when the body is not in working mode, giving an aesthetic appearance.
Automatic restart
Automatic restart
Extremely useful during power outages. When it recovers, the air conditioner turns on automatically.
Built-in
Built-in "Weekly Timer" Function
Easy setting of the desired temperature and the time of turning on and off the air conditioner in accordance with your lifestyle. Limit energy waste by using the timer to prevent the air conditioner from running excessively in case you forget to turn it off.
Remote control with backlight
Remote control with backlight
The remote control screen is LED-backlit, so you could check the settings even when the room is dark.
Ribbed pipes
Ribbed pipes
High efficiency finned tubes are used in heat exchangers to increase the heat exchange area.
Cooling to low temperatures
Cooling to low temperatures
Intelligent control of the ventilation power of the outdoor unit ensures optimal performance even when the outdoor temperature is low.
PAM control
PAM control
PAM is a technology that controls the sinusoidal shape of the current to match that of the voltage. In this way, efficient use of the input power is achieved. Using PAM control, 98% of the consumed power is used efficiently.
Purifying filter
Purifying filter
The filter has a large catching surface and aromatizes the circulating air.
Mode
Mode "i save"
“i save” is a simple function that restores the previous temperature setting of the air conditioner by pressing only one button on the remote control. Press the same button twice again to immediately return to the previous setting. This function contributes to comfortable and economical use by reducing the excess consumption of electricity when, for example, you leave the room or during sleep.
Mode of horizontal swing of the slat
Mode of horizontal swing of the slat
In this mode, the lamella of the air conditioner swings up and down, guaranteeing optimal air distribution in the room.
Self-diagnosis
Self-diagnosis
Check codes are displayed on the remote control screen or operation indicator to inform the user of malfunctions that have occurred.
Connection with cones
Connection with cones
It is possible to connect to the cooling pipelines through cones.
System management of a group of air conditioners
System management of a group of air conditioners
One remote control is able to control the mode of operation of up to 16 cooling systems.
Control PAR-33MAA/PAC-YT52CRA
Control PAR-33MAA/PAC-YT52CRA
The air conditioners are compatible with a remote control type PAR-33MAA or PAC-YT52CRA, which has multiple control functions.
Error storage function
Error storage function
Wide air flow 60/71
Wide air flow 60/71
The wide air flow function is extremely useful in large spaces and provides powerful and efficient air distribution to every point of the room being conditioned.

MSZ-AP60VGK/MXZ Series/

  • Technical information *

    Cooling capacity [kW] 1.4 - 6.1 - 7.3
    Heating capacity [kW] 2.0 - 6.8 - 8.6
    Dimensions [mm] 325 - 1100 - 257
    Weight [kg] 16
    Sound Level - Cooling [dB(A)] 29 - 37 - 41 - 45 - 48
    Sound Level - Heating [dB(A)] 30 - 37 - 41 - 45 - 48
    Air Volume - Cooling [m3/min] 9.4 - 11.0 - 13.2 - 16.0 - 18.9
    Air Volume - Heating [m3/min] 10.8 - 13.4 - 15.4 - 17.4 - 20.3
    Price (with VAT without installation) 1399.00 BGN / 715.30 €
