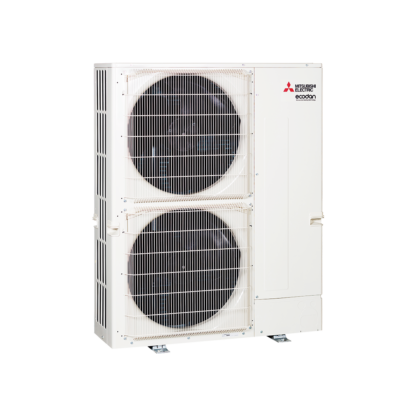

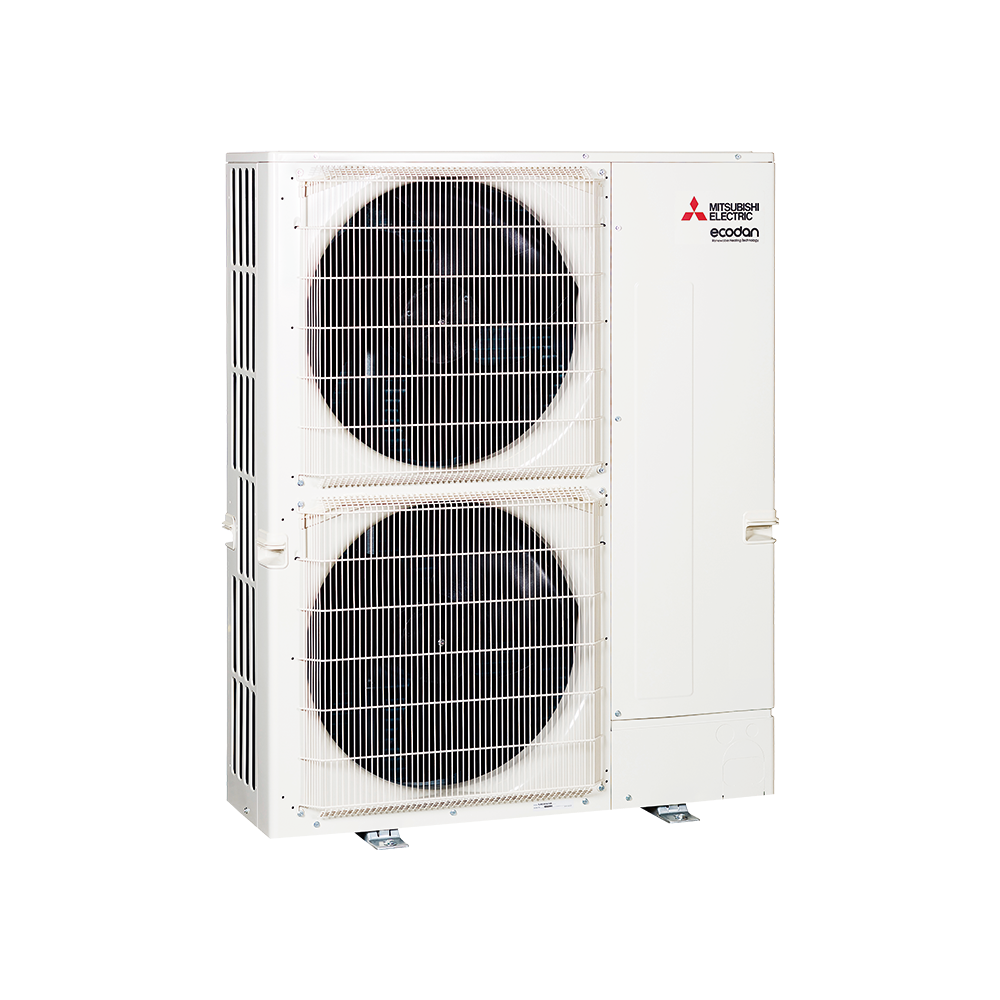

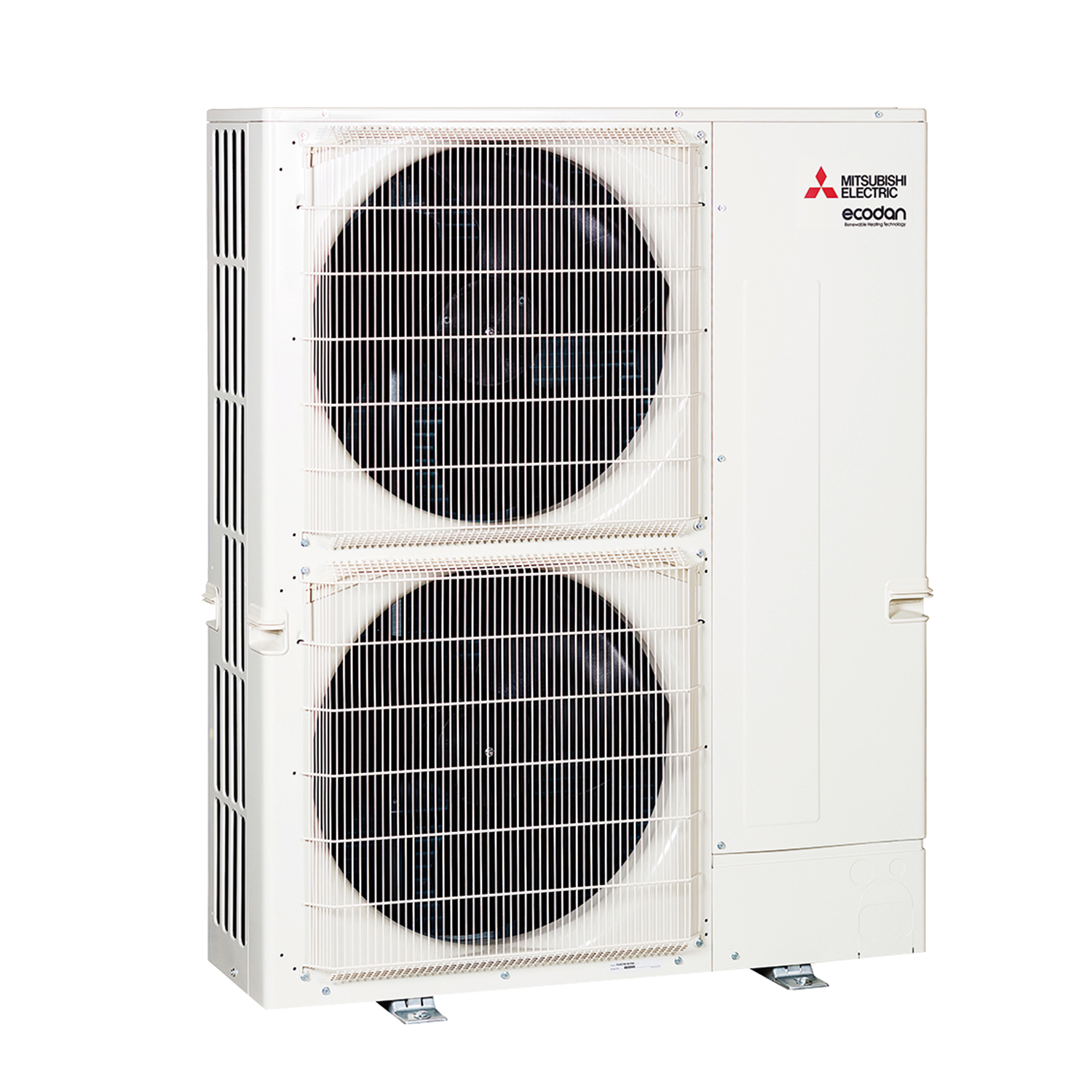

Ecodan R410 Outdoor Unit Mitsubishi Electric PUHZ-SW160YKA, Power Inverter, 16.0 kW / 55 000 BTU
Ecodan R410 Outdoor Unit Mitsubishi Electric PUHZ-SW160YKA, Power Inverter, 16.0 kW / 55 000 BTU - Image 2
16 130.00 BGN / € 8 247.14
(with VAT without installation)
Where to buy

Ecodan R410 Outdoor Unit Mitsubishi Electric PUHZ-SW160YKA, Power Inverter, 16.0 kW / 55 000 BTU

16,130.00 лв.

Ecodan Outdoor unit from the Power Inverter series with basic capacity of 55 000 BTU

The outdoor units Power Inverter have a guaranteed operating range up to -20°C and have circulating pump and electrical additional heating integrated. The refrigerant technology of the Power Inverter has an integrated compressor, which frequency is adjusted in accordance with the outdoor unit’s specifications.

At the same time, compared to the ordinary invertors, the Power Invertor technology has a pre-expansion phase, which allows bigger energy efficiency. The maximal water temperature is 60°C by positive outdoor temperature, which makes it the perfect solution when changing old installations.

You can find more information about the Ecodan heat pump system – https://test.climacom.bg/en/products/ecodan/ecodan/ecodan







Функции

PUHZ-SW160YKA

  • *

    Heating power A7-W35 / A-15/W35 [kW] 22.0 / 11.6
    Heat energy consumption A7-W35 / A-15/W35 [kW] 5.24 / 4.89
    COP A7-W35 / A-15/W35 4.20 / 2.37
    Average climate water outlet 35°C
    Average climate water outlet 55°C
    DHW 200/300(L) Load Profile (Average climate) -
    Cooling capacity A35-W7 / A35-W18 [kW] 16.0 / 18.0
    Energy consumption during cooling A35-W7 / A35-W18 [kW] 5.80 / 3.95
    EER A35-W7 / A35-W18 2.76 / 4.56
    Noise level during heating[dB(A)] 78
    Operating range -20 ~ +46
    Dimensions [mm] 1338 - 1050 - 330
    Weight [kg] 136
    Power supply 400 V / 3 N / 50 Hz
    Price (with VAT without installation)16 130.00 BGN / 8 247.14 €

Product total

Options total

Grand total
