Hybrid BC CONTROLLER

1.00лв.

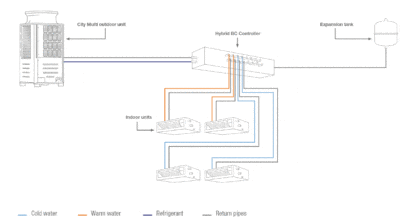

The Hybrid BC Controller features plate heat exchangers, in which the heat exchange between refrigerant and water takes place.

Ideal for use in hotels, large office complexes and much more besides: having been specially developed to meet the requirements of modern building architecture with high demands in terms of efficiency and comfort, each individual indoor unit can be operated independently in heating or cooling mode.

CMB-WM108V-AA

  • *

    Operating surrent (A)2.83
    Max. power indoor units (kW)40
    Max. power consumption (kW)0.46
    Water pipe size Ø (")3/4
    Connectable indoor units (number)8
    Dimensions [mm] 1520 - 630 - 300
    Weight [kg]86
    Power supply (V, phaze, Hz)220-240, 1, 50

CMB-WM108V-AB

  • *

    Operating surrent (A)0.05
    Max. power indoor units (kW)0.01
    Water pipe size Ø (")3/4
    Connectable indoor units (number)8
    Dimensions [mm] 1520 - 630 - 300
    Weight [kg]44
    Power supply (V, phaze, Hz)220-240, 1, 50

CMB-WM1016V-AB

  • *

    Operating surrent (A)0.05
    Max. power indoor units (kW)0.01
    Water pipe size Ø (")3/4
    Connectable indoor units (number)16
    Dimensions [mm] 1520 - 630 - 300
    Weight [kg]51
    Power supply (V, phaze, Hz)220-240, 1, 50

CMB-WM1016V-AA

  • *

    Operating surrent (A)2.83
    Max. power indoor units (kW)40
    Max. power consumption (kW)0.46
    Water pipe size Ø (")3/4
    Connectable indoor units (number)16
    Dimensions [mm] 1800 - 630 - 300
    Weight [kg]98
    Power supply (V, phaze, Hz)220-240, 1, 50
